Understanding Basic Power Constraints in Kaira

This example demonstrates the usage of basic power constraints in Kaira. We’ll explore how to apply various constraints to signals and visualize their effects.

Imports and Setup

We start by importing the necessary modules and setting up the environment.

import matplotlib.pyplot as plt
import numpy as np
import torch

from kaira.constraints import AveragePowerConstraint, PAPRConstraint, TotalPowerConstraint
from kaira.constraints.utils import measure_signal_properties

# Set random seed for reproducibility
torch.manual_seed(42)
np.random.seed(42)

Create Sample Signals

Let’s create some sample signals to apply constraints to.

# Create a simple sinusoidal signal
t = np.linspace(0, 1, 1000)
frequency = 5  # Hz
amplitude = 2.0
sine_signal = amplitude * np.sin(2 * np.pi * frequency * t)
sine_tensor = torch.from_numpy(sine_signal).float().reshape(1, -1)

# Create a multi-tone signal with high PAPR
frequencies = [5, 15, 25, 35]
multi_tone = np.zeros_like(t)
for freq in frequencies:
    multi_tone += np.sin(2 * np.pi * freq * t)
multi_tone_tensor = torch.from_numpy(multi_tone).float().reshape(1, -1)

# Create a random signal
random_signal = np.random.randn(1000)
random_tensor = torch.from_numpy(random_signal).float().reshape(1, -1)

# Dictionary of signals for processing
signals = {"Sine Wave": sine_tensor, "Multi-tone": multi_tone_tensor, "Random": random_tensor}

# Display properties of original signals
print("Original Signal Properties:")
for name, signal in signals.items():
    props = measure_signal_properties(signal)
    print(f"{name}:")
    print(f"  Power: {props['mean_power']:.4f}")
    print(f"  PAPR: {props['papr']:.2f} ({props['papr_db']:.2f} dB)")
    print(f"  Max Amplitude: {props['peak_amplitude']:.4f}")

Original Signal Properties:
Sine Wave:
  Power: 1.9980
  PAPR: 2.00 (3.01 dB)
  Max Amplitude: 2.0000
Multi-tone:
  Power: 1.9980
  PAPR: 4.33 (6.36 dB)
  Max Amplitude: 2.9404
Random:
  Power: 0.9583
  PAPR: 15.49 (11.90 dB)
  Max Amplitude: 3.8527

Apply Total Power Constraint

We’ll apply a TotalPowerConstraint to normalize signals to a specific power level.

target_power = 1.0
power_constraint = TotalPowerConstraint(total_power=target_power)

power_results = {}
print(f"\nApplying TotalPowerConstraint (target power = {target_power}):")
for name, signal in signals.items():
    # Apply constraint
    constrained_signal = power_constraint(signal)
    props = measure_signal_properties(constrained_signal)

    # Store for visualization
    power_results[name] = constrained_signal.squeeze().numpy()

    # Print results
    print(f"{name}:")
    print(f"  Constrained Power: {props['mean_power']:.4f}")
    print(f"  PAPR: {props['papr']:.2f} ({props['papr_db']:.2f} dB)")
    print(f"  Max Amplitude: {props['peak_amplitude']:.4f}")

Applying TotalPowerConstraint (target power = 1.0):
Sine Wave:
  Constrained Power: 0.0010
  PAPR: 2.00 (3.01 dB)
  Max Amplitude: 0.0447
Multi-tone:
  Constrained Power: 0.0010
  PAPR: 4.33 (6.36 dB)
  Max Amplitude: 0.0658
Random:
  Constrained Power: 0.0010
  PAPR: 15.49 (11.90 dB)
  Max Amplitude: 0.1245

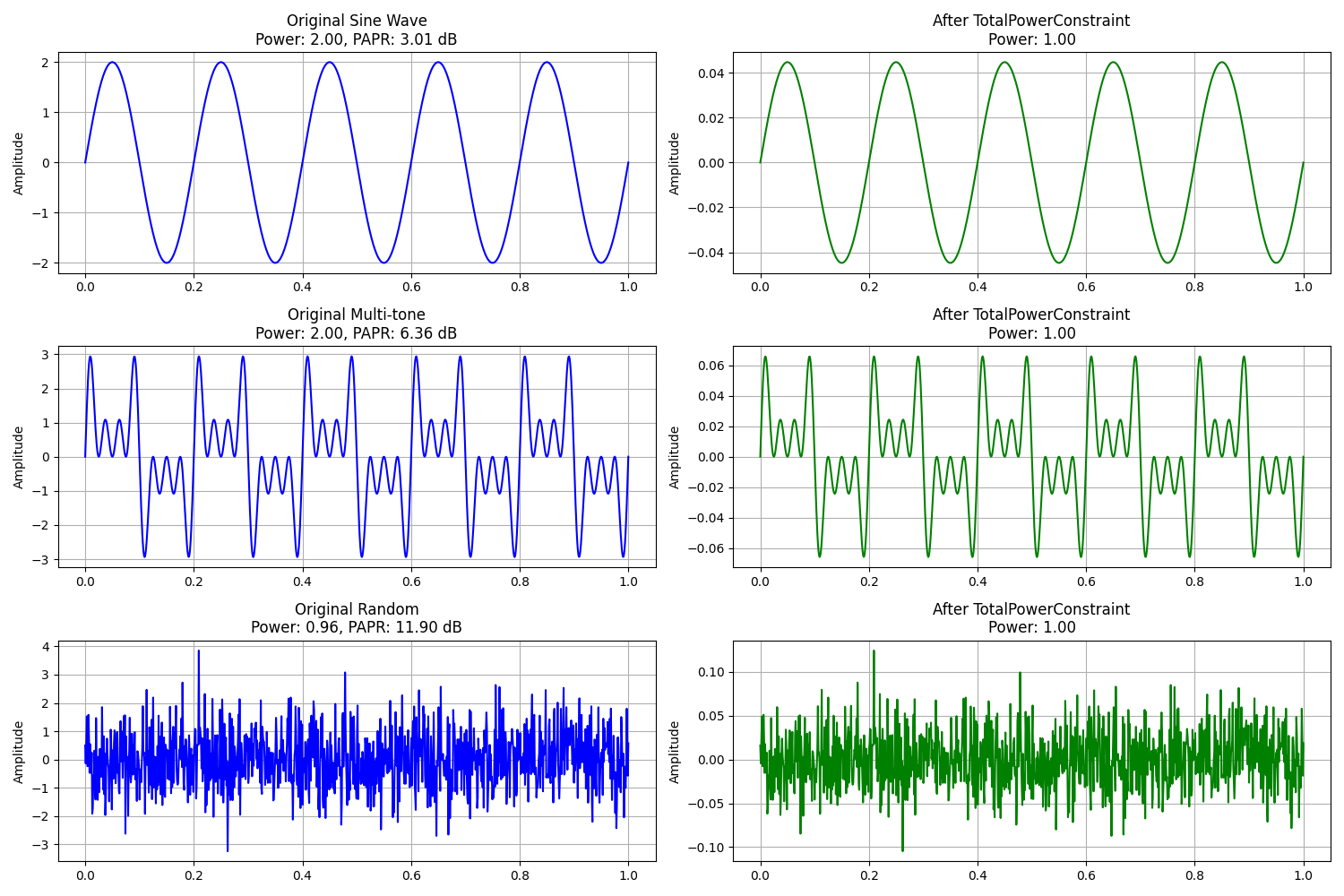

Visualize Total Power Constraint Results

plt.figure(figsize=(15, 10))
for i, (name, signal) in enumerate(signals.items()):
    # Plot original signal
    plt.subplot(len(signals), 2, i * 2 + 1)
    plt.plot(t, signal.squeeze().numpy(), "b-")
    props = measure_signal_properties(signal)
    plt.title(f'Original {name}\nPower: {props["mean_power"]:.2f}, PAPR: {props["papr_db"]:.2f} dB')
    plt.grid(True)
    plt.ylabel("Amplitude")

    # Plot power-constrained signal
    plt.subplot(len(signals), 2, i * 2 + 2)
    plt.plot(t, power_results[name], "g-")
    plt.title(f"After TotalPowerConstraint\nPower: {target_power:.2f}")
    plt.grid(True)
    plt.ylabel("Amplitude")

plt.tight_layout()
plt.show()

Apply PAPR Constraint

Now let’s apply a constraint on Peak-to-Average Power Ratio (PAPR).

max_papr = 2.0  # in linear units (approximately 3 dB)
papr_constraint = PAPRConstraint(max_papr=max_papr)

papr_results = {}
print(f"\nApplying PAPRConstraint (max PAPR = {max_papr}):")
for name, signal in signals.items():
    # Apply constraint - reshaping to handle the dimension issue
    # The constraint expects a specific tensor shape to work with torch.max()
    signal_reshaped = signal.reshape(signal.shape[0], -1)  # Ensure it's [batch, sequence]
    constrained_signal = papr_constraint(signal_reshaped)
    props = measure_signal_properties(constrained_signal)

    # Store for visualization
    papr_results[name] = constrained_signal.squeeze().numpy()

    # Print results
    print(f"{name}:")
    print(f"  Power: {props['mean_power']:.4f}")
    print(f"  Constrained PAPR: {props['papr']:.2f} ({props['papr_db']:.2f} dB)")
    print(f"  Max Amplitude: {props['peak_amplitude']:.4f}")

Applying PAPRConstraint (max PAPR = 2.0):
Sine Wave:
  Power: 1.9431
  Constrained PAPR: 1.85 (2.67 dB)
  Max Amplitude: 1.8964
Multi-tone:
  Power: 0.7003
  Constrained PAPR: 1.92 (2.83 dB)
  Max Amplitude: 1.1585
Random:
  Power: 0.4746
  Constrained PAPR: 1.92 (2.83 dB)
  Max Amplitude: 0.9542

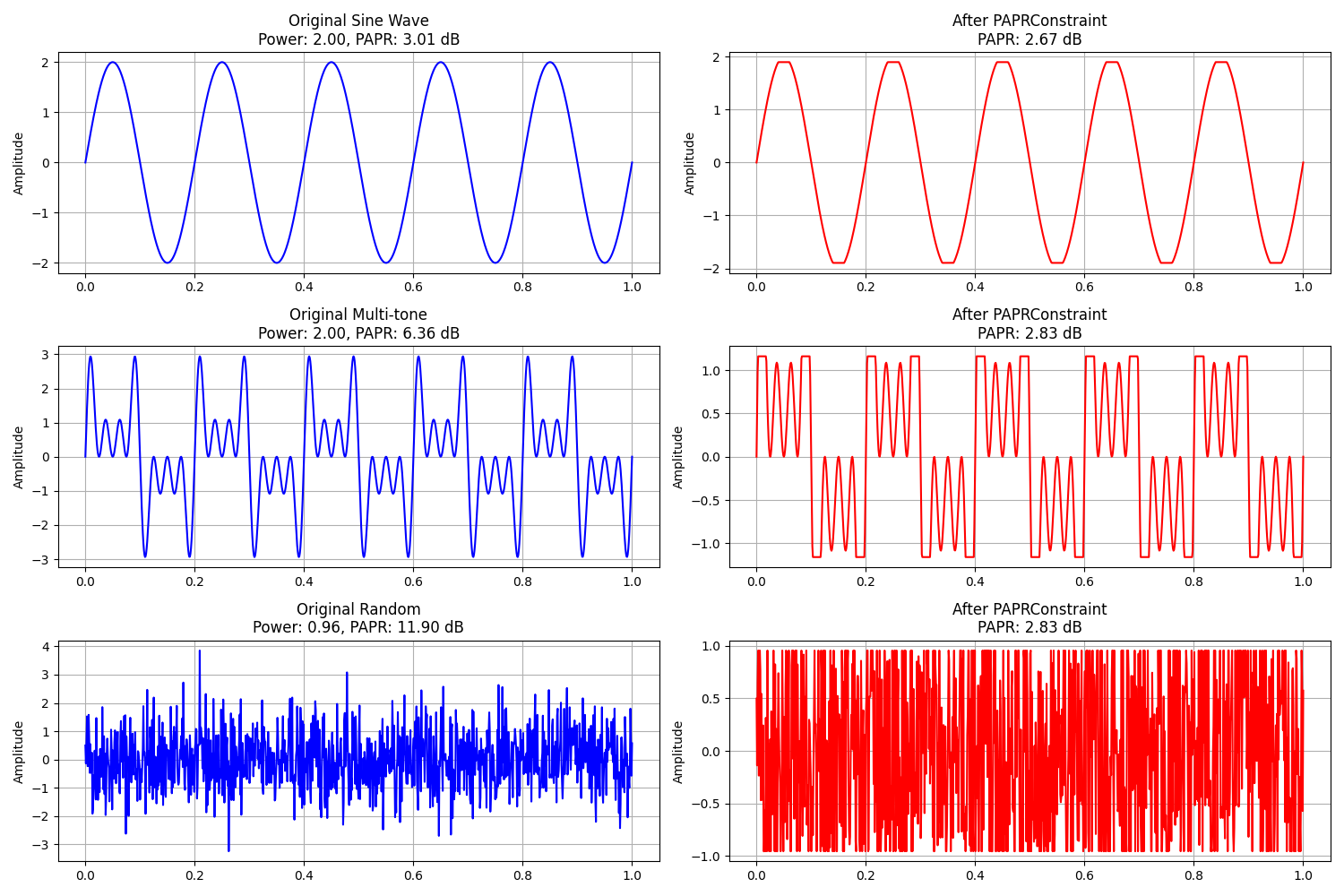

Visualize PAPR Constraint Results

plt.figure(figsize=(15, 10))
for i, (name, signal) in enumerate(signals.items()):
    # Plot original signal
    plt.subplot(len(signals), 2, i * 2 + 1)
    plt.plot(t, signal.squeeze().numpy(), "b-")
    props = measure_signal_properties(signal)
    plt.title(f'Original {name}\nPower: {props["mean_power"]:.2f}, PAPR: {props["papr_db"]:.2f} dB')
    plt.grid(True)
    plt.ylabel("Amplitude")

    # Plot PAPR-constrained signal
    plt.subplot(len(signals), 2, i * 2 + 2)
    plt.plot(t, papr_results[name], "r-")
    constrained_props = measure_signal_properties(torch.tensor(papr_results[name]).reshape(1, -1))
    plt.title(f'After PAPRConstraint\nPAPR: {constrained_props["papr_db"]:.2f} dB')
    plt.grid(True)
    plt.ylabel("Amplitude")

plt.tight_layout()
plt.show()

Apply Average Power Constraint

The AveragePowerConstraint is useful when you want to control the average power per sample.

avg_power = 0.5
avg_power_constraint = AveragePowerConstraint(average_power=avg_power)

avg_power_results = {}
print(f"\nApplying AveragePowerConstraint (average power = {avg_power}):")
for name, signal in signals.items():
    # Apply constraint
    constrained_signal = avg_power_constraint(signal)
    props = measure_signal_properties(constrained_signal)

    # Store for visualization
    avg_power_results[name] = constrained_signal.squeeze().numpy()

    # Print results
    print(f"{name}:")
    print(f"  Constrained Average Power: {props['mean_power']:.4f}")
    print(f"  PAPR: {props['papr']:.2f} ({props['papr_db']:.2f} dB)")
    print(f"  Max Amplitude: {props['peak_amplitude']:.4f}")

Applying AveragePowerConstraint (average power = 0.5):
Sine Wave:
  Constrained Average Power: 0.5000
  PAPR: 2.00 (3.01 dB)
  Max Amplitude: 1.0005
Multi-tone:
  Constrained Average Power: 0.5000
  PAPR: 4.33 (6.36 dB)
  Max Amplitude: 1.4709
Random:
  Constrained Average Power: 0.5000
  PAPR: 15.49 (11.90 dB)
  Max Amplitude: 2.7830

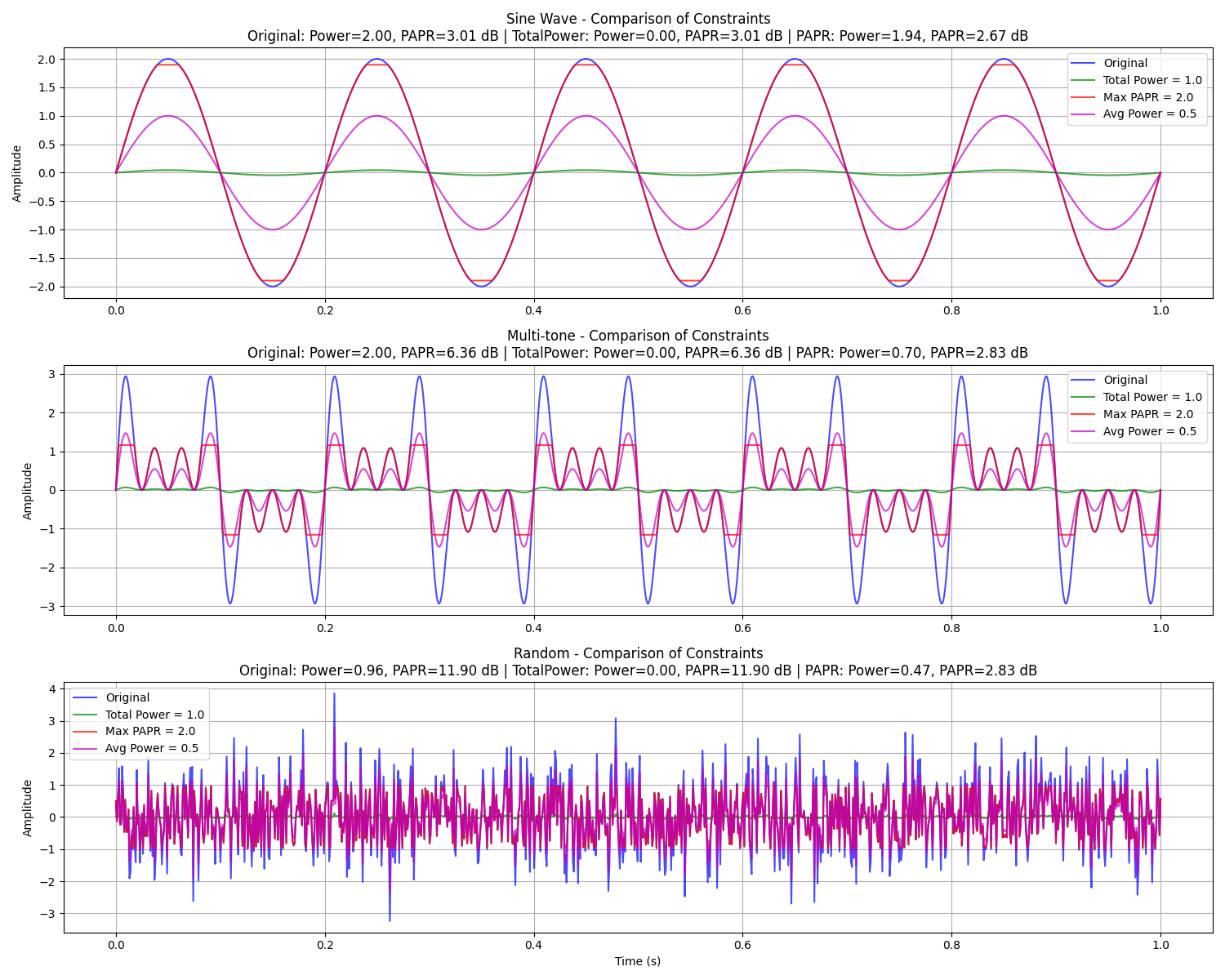

Compare the Effects of Different Constraints

Let’s compare how different constraints affect the same signal

plt.figure(figsize=(15, 12))
for i, (name, original) in enumerate(signals.items()):
    original_np = original.squeeze().numpy()
    power_np = power_results[name]
    papr_np = papr_results[name]
    avg_power_np = avg_power_results[name]

    plt.subplot(len(signals), 1, i + 1)
    plt.plot(t, original_np, "b-", alpha=0.7, label="Original")
    plt.plot(t, power_np, "g-", alpha=0.7, label=f"Total Power = {target_power}")
    plt.plot(t, papr_np, "r-", alpha=0.7, label=f"Max PAPR = {max_papr}")
    plt.plot(t, avg_power_np, "m-", alpha=0.7, label=f"Avg Power = {avg_power}")

    # Measure properties for display
    orig_props = measure_signal_properties(original)
    power_props = measure_signal_properties(torch.tensor(power_np).reshape(1, -1))
    papr_props = measure_signal_properties(torch.tensor(papr_np).reshape(1, -1))
    avg_props = measure_signal_properties(torch.tensor(avg_power_np).reshape(1, -1))

    plt.title(
        f"{name} - Comparison of Constraints\n"
        f'Original: Power={orig_props["mean_power"]:.2f}, PAPR={orig_props["papr_db"]:.2f} dB | '
        f'TotalPower: Power={power_props["mean_power"]:.2f}, PAPR={power_props["papr_db"]:.2f} dB | '
        f'PAPR: Power={papr_props["mean_power"]:.2f}, PAPR={papr_props["papr_db"]:.2f} dB'
    )

    plt.grid(True)
    plt.ylabel("Amplitude")
    plt.legend()

plt.xlabel("Time (s)")
plt.tight_layout()
plt.show()

Conclusion

This example demonstrated how to use the basic power constraints in Kaira:

• TotalPowerConstraint: Normalizes the signal to have a specific total power

• PAPRConstraint: Limits the peak-to-average power ratio, which is important in many communication systems to prevent amplifier saturation

• AveragePowerConstraint: Controls the average power per sample

Key observations: - The TotalPowerConstraint preserves the signal shape while scaling its amplitude - The PAPRConstraint affects peaks while preserving lower amplitude portions - Different signals respond differently to the same constraints

These constraints are fundamental building blocks in communication system design, particularly for signals that will be transmitted through physical channels with power limitations.
